Minimal EDC Wood & Leather Wallet
This post is sponsored by Inventables.
We designed our wallet on Adobe Illustrator and then could export it as a SVG file that Easel could use. Easel is the online software used to run the x-carve.
We are using some left over walnut in our shop. We haven’t done much with hardwoods in a long time so we are excited to use walnut for this project, I mean who doesn’t love walnut.

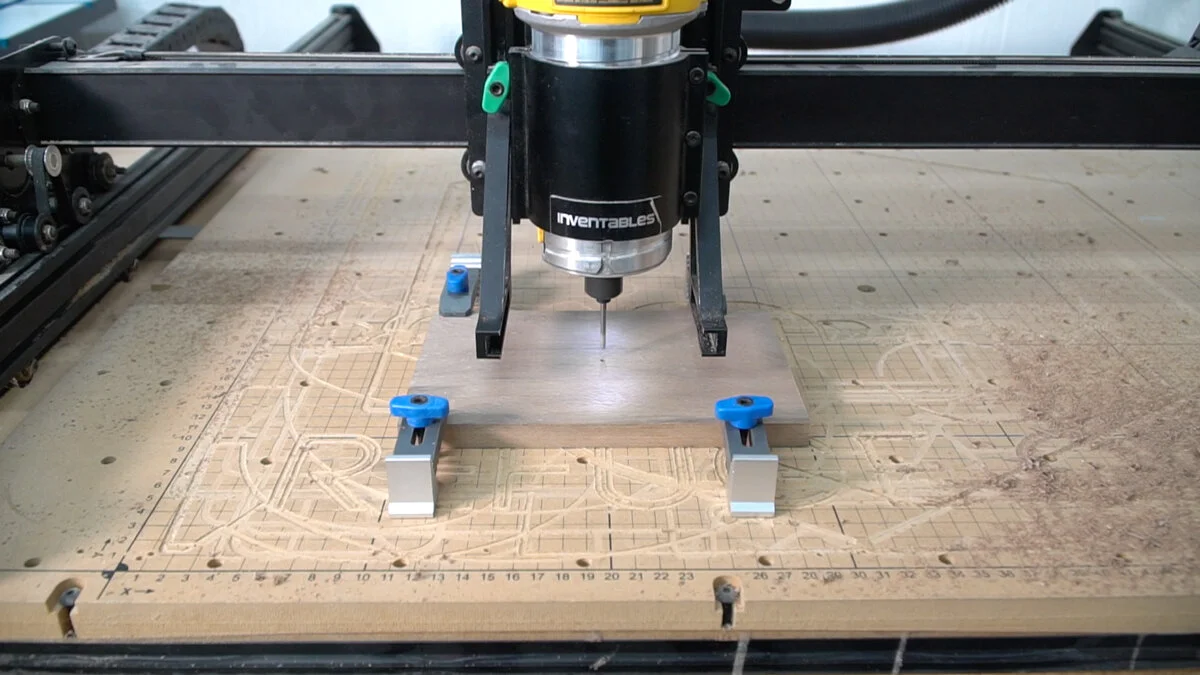

We have to first clamp our board down and square everything up. This wallet is a two step cut that involves flipping the piece over so its super important to line everything up correctly. We aligned the the file to be centered over the 0,0 point and also marked the center of the board we are cutting. We will always reference this center point and to make things even easier we added a small hole to be cut in the center so when we flip the board we just line the machine back up to the center.
While that is cutting we’d like to thank Inventables for sponsoring this weeks video! We have had our machine for over a year now and absolutely love having it in our shop. It’s amazing how creative you can get with designs. And for all of you who have watched us push our creativity this year, we want to say thank you for supporting us! With Thanksgiving quickly approaching, we would like to offer you a token of our appreciation.
Inventables has sent us an exclusive code (WOODBREWFRIEND) that will save you $100 on the purchase of an X-Carve. They rarely do discounts, so it’s definitely worth going over to their website to look around! The code is valid until 11/10 and you can read full T&Cs here.
*For one-time use only. Cannot be combined with other discounts. Not valid on prior purchases. Order must be at least $1,000 (before shipping and tax) and include an X-Carve. Payment must be made with credit card or PayPal through the Inventables payment gateway, or via Affirm. Offer expires at 11:59 pm CT on 11/10/18. Offer limited to first 15 customer redemptions only.
Link to Inventables, click here.
Thanks Inventables!

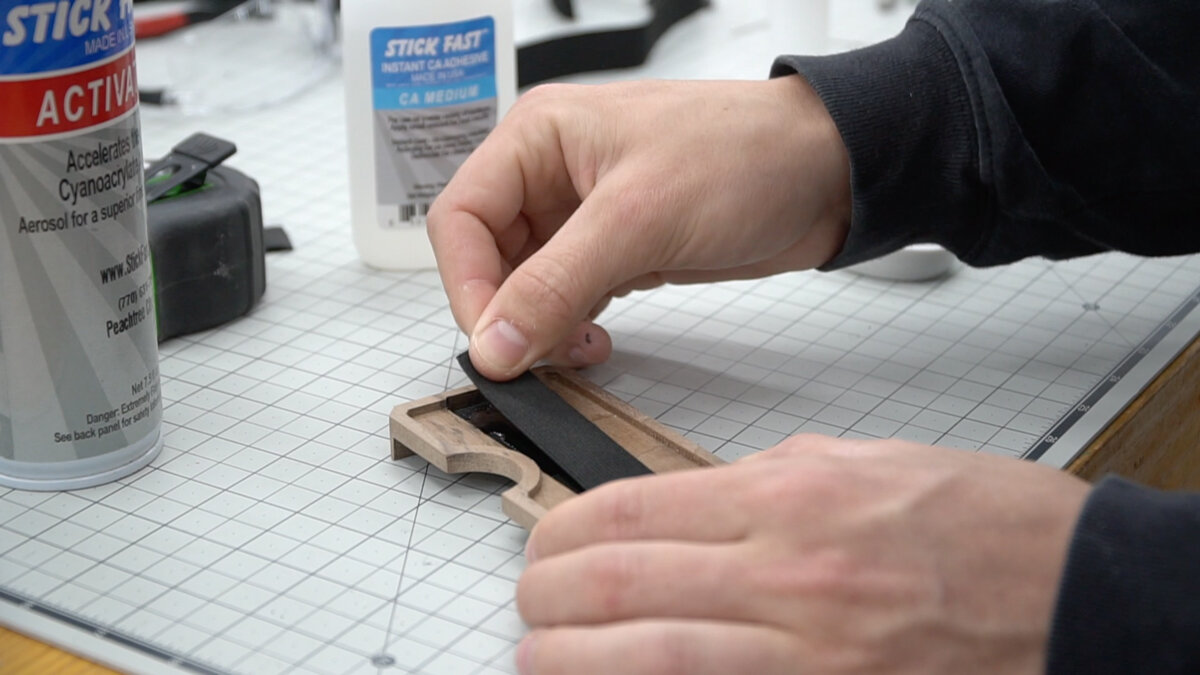

Now that we have the wooden part cut out, we can get to play around with inserts. We love that this design can be modified by using different materials for both the body of the wallet and the insert on the front. We used the inlay generator on Easel to cut a piece to fit in the pocket on the front of the wallet. For the first wallet we choose to use black acrylic and engraved WB in the bottom right corner. Once that was cut out and everything got sanded it was time for assembly. This wallet is going to be open, so we are going to use 3/4” elastic around the entire wallet to hold cards and cash in place. We considered sewing the elastic together, but there wasn’t a really good way to do so, so instead we super glued one end of the elastic to the wood, and then wrapped it around once, lightly burned the end of the elastic to keep it from fraying, and then super glued the other end of elastic on top. We used a “quick setting spray” to help the glue cure faster.
Now its time for the insert which while cover the elastic. We scuffed up one side of the acrylic to give the glue something to grab onto. We used CA glue to glue that in place.
To finish it all off, we used a wood wax from walrus oil. This stuff is great when you want a soft wearable finish. It feels really good in your hands as well.
We love how this minimal wallet turned out. The cards are easily removable, but not to easy, and easy to place back in either to the back of the deck or the front. We also made a couple extra with leather and aluminum inserts. We absolutely love how these came out!
UPDATE: It's 4 months later, and we are still using these wallets and have had no problems with them at all! Super stoked that they are still holding up and working so well for us. So, this is a great X-Carve project!
I acknowledge that Inventables is partnering with me to participate in the ProSpective 2018 Campaign. As a part of the Program, I am receiving compensation in the form of products and services, for the purpose of promoting Inventables. All expressed opinions and experiences are my own words. My post complies with the Word Of Mouth Marketing Association (WOMMA) Ethics Code and applicable Federal Trade Commission guidelines.
